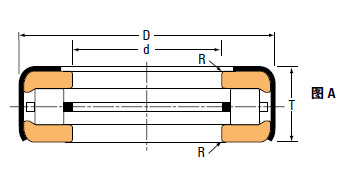

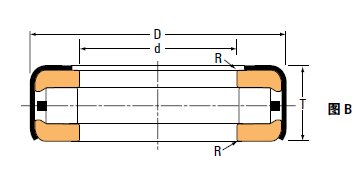

Tapered Roller Thrust Bearing / Type TTSP

Part Number		Dimensions			Steering Pivot Rating	Bearing Weight
No Oil Holes In Retainer	Oil Holes In Retainer	Bore	Outside Diameter	Width
		d	D	T
		mm in.	mm in.	mm in.	N lbf	kg lbs.
T63	T63W	16.129	41.275	12.7	11100	0.08
T63	T63W	0.635	1.625	0.5	2500	0.18
T76	T76W	19.304	41.275	13.487	11100	0.08
T76	T76W	0.76	1.625	0.531	2500	0.18
T77	T77W	19.304	41.275	12.7	11100	0.07
T77	T77W	0.76	1.625	0.5	2500	0.15
T82	T82W	20.879	41.275	13.487	11100	0.07
T82	T82W	0.822	1.625	0.531	2500	0.15
T86	ㅡ	20.257	39.688	14.288	10700	0.07
T86	ㅡ	0.7975	1.5625	0.5625	2400	0.15
T88	T88W	22.479	48.021	15.088	17300	0.11
T88	T88W	0.885	1.8906	0.594	3890	0.24
T89	ㅡ	22.479	48.021	15.875	17350	0.12
T89	ㅡ	0.885	1.8906	0.625	3900	0.26
T92	ㅡ	23.825	44.958	13.487	11950	ㅡ
T92	ㅡ	0.938	1.77	0.531	2690	ㅡ
T93	ㅡ	24.054	44.958	13.487	11950	0.09
T93	ㅡ	0.947	1.77	0.531	2690	0.2
T94	T94W	24.054	48.021	15.088	17350	0.11
T94	T94W	0.947	1.8906	0.594	3900	0.24
T95	T95W	24.13	50.8	15.875	18600	0.13
T95	T95W	0.95	2	0.625	4200	0.29
T101	T101W	25.654	50.8	15.875	18600	0.13
T101	T101W	1.01	2	0.625	4200	0.29
T101X	ㅡ	25.146	50.8	15.875	18600	ㅡ
T101X	ㅡ	0.99	2	0.625	4200	ㅡ
T102R	ㅡ	25.654	50.8	16.916	18600	ㅡ
T102R	ㅡ	1.01	2	0.666	4200	ㅡ
T104	T104W	26.289	50.8	15.875	18600	0.13
T104	T104W	1.035	2	0.625	4200	0.29
T105	ㅡ	25.654	50.8	15.875	18600	ㅡ
T105	ㅡ	1.01	2	0.625	4200	ㅡ
T107	T107W	27.299	50.8	15.875	18600	0.12
T107	T107W	1.072	2	0.625	4200	0.26
T110	T110W	28.829	53.188	15.875	20000	0.14
T110	T110W	1.135	2.094	0.625	4500	0.31
T113	T113W	28.829	55.562	15.875	20000	0.15
T113	T113W	1.135	2.1875	0.625	4500	0.33
T114	T114W	25.654	55.562	15.875	20000	ㅡ
T114	T114W	1.01	2.1875	0.625	4500	ㅡ
T114X	ㅡ	28.829	50.8	15.875	20000	ㅡ
T114X	ㅡ	1.135	2	0.625	4500	ㅡ
T119	T119W	30.416	55.562	15.875	20000	0.15
T119	T119W	1.1975	2.1875	0.625	4500	0.33
T120	ㅡ	30.416	54.745	11.43	16500	0.11
T120	ㅡ	1.1975	2.1553	0.45	3710	0.24
T121	ㅡ	30.716	55.562	15.875	20000	0.16
T121	ㅡ	1.2093	2.1875	0.625	4500	0.35
T126	T126W	32.004	55.562	15.875	20000	0.14
T126	T126W	1.26	2.1875	0.625	4500	0.31
T126A	T126AW	32.004	55.562	15.875	20000	0.14
T126A	T126AW	1.26	2.1875	0.625	4500	0.31
T139	T139W	35.179	58.738	15.875	21400	0.15
T139	T139W	1.385	2.3125	0.625	4800	0.33
T139KP	ㅡ	35.179	58.738	15.875	21400	0.15
T139KP	ㅡ	1.385	2.3125	0.625	4800	0.33
T142	T142W	35.179	62.708	19.431	22400	0.23
T142	T142W	1.385	2.4688	0.765	5050	0.51
T149	T149W	38.303	65.883	19.431	23600	0.24
T149	T149W	1.508	2.5938	0.765	5300	0.53
T158	ㅡ	40.234	65.883	19.431	23600	0.23
T158	ㅡ	1.584	2.5938	0.765	5300	0.51
T199	T199W	51.054	74.612	15.875	26000	0.2
T199	T199W	2.01	2.9375	0.625	5850	0.44
T309	T309W	78.583	102.395	15.875	35400	0.29
T309	T309W	3.0938	4.0313	0.625	8000	0.64
T387	T387W	96.425	127	17.463	43000	0.5
T387	T387W	3.875	5	0.765	9700	1.1
T484	ㅡ	123.012	152.4	17.463	47500	0.63
T484	ㅡ	4.843	6	0.6875	10600	1.39
T581	ㅡ	147.638	177.8	17.463	51500	0.89
T581	ㅡ	5.8125	7	0.6875	11600	1.96
T1760	ㅡ	44.623	76.2	10.922	31600	0.18
T1760	ㅡ	1.7568	3	0.43	7100	0.4

Part Number		Dimensions
No Oil Holes In Retainer	Oil Holes In Retainer	Bore	Outside Diameter	Width
		d	D	T
		mm in.	mm in.	mm in.
T63	T63W	16.129	41.275	12.7
T63	T63W	0.635	1.625	0.5
T76	T76W	19.304	41.275	13.487
T76	T76W	0.76	1.625	0.531
T77	T77W	19.304	41.275	12.7
T77	T77W	0.76	1.625	0.5
T82	T82W	20.879	41.275	13.487
T82	T82W	0.822	1.625	0.531
T86	ㅡ	20.257	39.688	14.288
T86	ㅡ	0.7975	1.5625	0.5625
T88	T88W	22.479	48.021	15.088
T88	T88W	0.885	1.8906	0.594
T89	ㅡ	22.479	48.021	15.875
T89	ㅡ	0.885	1.8906	0.625
T92	ㅡ	23.825	44.958	13.487
T92	ㅡ	0.938	1.77	0.531
T93	ㅡ	24.054	44.958	13.487
T93	ㅡ	0.947	1.77	0.531
T94	T94W	24.054	48.021	15.088
T94	T94W	0.947	1.8906	0.594
T95	T95W	24.13	50.8	15.875
T95	T95W	0.95	2	0.625
T101	T101W	25.654	50.8	15.875
T101	T101W	1.01	2	0.625
T101X	ㅡ	25.146	50.8	15.875
T101X	ㅡ	0.99	2	0.625
T102R	ㅡ	25.654	50.8	16.916
T102R	ㅡ	1.01	2	0.666
T104	T104W	26.289	50.8	15.875
T104	T104W	1.035	2	0.625
T105	ㅡ	25.654	50.8	15.875
T105	ㅡ	1.01	2	0.625
T107	T107W	27.299	50.8	15.875
T107	T107W	1.072	2	0.625
T110	T110W	28.829	53.188	15.875
T110	T110W	1.135	2.094	0.625
T113	T113W	28.829	55.562	15.875
T113	T113W	1.135	2.1875	0.625
T114	T114W	25.654	55.562	15.875
T114	T114W	1.01	2.1875	0.625
T114X	ㅡ	28.829	50.8	15.875
T114X	ㅡ	1.135	2	0.625
T119	T119W	30.416	55.562	15.875
T119	T119W	1.1975	2.1875	0.625
T120	ㅡ	30.416	54.745	11.43
T120	ㅡ	1.1975	2.1553	0.45
T121	ㅡ	30.716	55.562	15.875
T121	ㅡ	1.2093	2.1875	0.625
T126	T126W	32.004	55.562	15.875
T126	T126W	1.26	2.1875	0.625
T126A	T126AW	32.004	55.562	15.875
T126A	T126AW	1.26	2.1875	0.625
T139	T139W	35.179	58.738	15.875
T139	T139W	1.385	2.3125	0.625
T139KP	ㅡ	35.179	58.738	15.875
T139KP	ㅡ	1.385	2.3125	0.625
T142	T142W	35.179	62.708	19.431
T142	T142W	1.385	2.4688	0.765
T149	T149W	38.303	65.883	19.431
T149	T149W	1.508	2.5938	0.765
T158	ㅡ	40.234	65.883	19.431
T158	ㅡ	1.584	2.5938	0.765
T199	T199W	51.054	74.612	15.875
T199	T199W	2.01	2.9375	0.625
T309	T309W	78.583	102.395	15.875
T309	T309W	3.0938	4.0313	0.625
T387	T387W	96.425	127	17.463
T387	T387W	3.875	5	0.765
T484	ㅡ	123.012	152.4	17.463
T484	ㅡ	4.843	6	0.6875
T581	ㅡ	147.638	177.8	17.463
T581	ㅡ	5.8125	7	0.6875
T1760	ㅡ	44.623	76.2	10.922
T1760	ㅡ	1.7568	3	0.43
