Tapered Roller Thrust Bearing / Type TTC, TTCS, TTCL

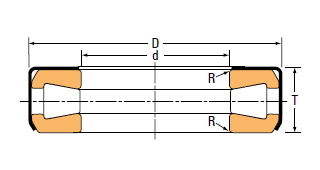

Type TTC

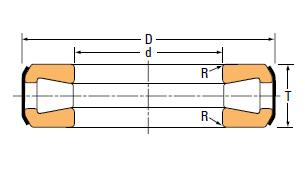

Type TTCS

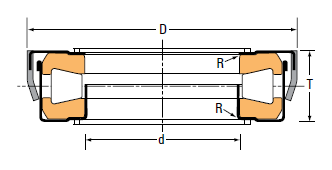

Type TTCL

Part Number		Dimensions			Steering Pivot Rating	Bearing Weight
No Oil Holes In Retainer	Oil Holes In Retainer	Bore	Outside Diameter	Width
		d	D	T
		mm in.	mm in.	mm in.	N lbf	kg lbs.
T127	T127W	32.004	66.675	19.446	42200	0.31
T127	T127W	1.26	2.625	0.7656	9450	0.68
T128	ㅡ	32.004	66.675	18.654	42200	0.29
T128	ㅡ	1.26	2.625	0.7344	9450	0.64
T130	ㅡ	27.102	66.675	19.446	42200	0.34
T130	ㅡ	1.067	2.625	0.7656	9450	0.75
T136	ㅡ	35.179	66.675	18.654	42200	0.28
T136	ㅡ	1.385	2.625	0.7344	9450	0.62
T138	T138W	35.179	66.675	19.446	42200	0.3
T138	T138W	1.385	2.625	0.7656	9450	0.66
T138XS	ㅡ	35.179	66.675	19.446	42200	ㅡ
T138XS	ㅡ	1.385	2.625	0.7656	9450	ㅡ
T144	T144W	36.754	66.675	19.446	42200	0.29
T144	T144W	1.447	2.625	0.7656	9450	0.64
T144XA	ㅡ	36.754	66.675	19.446	42200	ㅡ
T144XA	ㅡ	1.447	2.625	0.7656	9450	ㅡ
T151	T151W	38.354	72.619	21.433	47000	0.37
T151	T151W	1.51	2.859	0.8438	10600	0.82
T152	ㅡ	38.354	72.619	20.638	47000	0.35
T152	ㅡ	1.51	2.859	0.8125	10600	0.77
T157	T157W	39.954	72.619	21.433	47000	0.37
T157	T157W	1.573	2.859	0.8438	10600	0.82
T163	T163W	41.529	72.619	21.433	47000	0.35
T163	T163W	1.635	2.859	0.8438	10600	0.77
T163X	T163XW	41.529	72.619	21.433	47000	0.35
T163X	T163XW	1.635	2.859	0.8438	10600	0.77
T169	T169W	43.104	82.956	23.812	64000	0.55
T169	T169W	1.697	3.266	0.9375	14300	1.21
T176	T176W	44.704	82.956	23.812	64000	0.54
T176	T176W	1.76	3.266	0.9375	14300	1.19
T177	ㅡ	45	73	20	47500	0.32
T177	ㅡ	1.7717	2.874	0.7874	10700	0.71
T177A	ㅡ	45.484	73	20	47500	0.33
T177A	ㅡ	1.7907	2.874	0.7874	10700	0.73
T177XA	ㅡ	45	73.127	20	47500	ㅡ
T177XA	ㅡ	1.7717	2.879	0.7874	10700	ㅡ
T177S	ㅡ	45	74.5	20.221	47500	0.35
T177S	ㅡ	1.7717	2.9331	0.7961	10700	0.77
T178	ㅡ	40.401	73	19	47500	ㅡ
T178	ㅡ	1.5906	2.874	0.748	10700	ㅡ
T182	T182W	46.279	82.956	23.812	64000	0.52
T182	T182W	1.822	3.266	0.9375	14300	1.15
T188	T188W	47.879	82.956	23.812	64000	0.52
T188	T188W	1.885	3.266	0.9375	14300	1.15
T189	T189W	47.879	82.956	23.02	64000	0.5
T189	T189W	1.885	3.266	0.9063	14300	1.1
T193	T193W	49.454	93.269	26.187	86000	0.8
T193	T193W	1.947	3.672	1.031	19400	1.76
T194	T194W	49.454	93.269	26.975	86000	0.81
T194	T194W	1.947	3.672	1.062	19400	1.79
T201	T201W	51.054	93.269	26.187	86000	0.77
T201	T201W	2.01	3.672	1.031	19400	1.7
T202	T202W	51.054	93.269	26.975	86000	0.8
T202	T202W	2.01	3.672	1.062	19400	1.76
T208	T208W	52.629	93.269	26.975	86000	0.79
T208	T208W	2.072	3.672	1.062	19400	1.74
T209	T209W	52.629	93.269	26.187	86000	0.75
T209	T209W	2.072	3.672	1.031	19400	1.65
T251	T251W	63.754	111.125	26.988	124000	1.07
T251	T251W	2.51	4.375	1.0625	27900	2.36
T252	T252W	63.754	111.125	25.796	124000	1.07
T252	T252W	2.51	4.375	1.0156	27900	2.23
T301	T301W	76.454	133.35	33.338	178500	1.87
T301	T301W	3.01	5.25	1.3125	40000	4.12
T302	T302W	76.454	133.35	34.925	178500	1.99
T302	T302W	3.01	5.25	1.375	40000	4.39
T350	ㅡ	88.9	133.35	33.335	115500	1.41
T350	ㅡ	3.5	5.25	1.3124	26000	3.11
T402	T402W	102.108	179.619	44.45	344000	4.84
T402	T402W	4.02	7.0716	1.75	77500	10.67
T600	T600W	152.4	241.3	76.2	575000	14.1
T600	T600W	8	9.5	3	129000	31.09
T1260	T1260W	32.004	55.562	15.875	27600	0.17
T1260	T1260W	1.26	2.1875	0.625	6200	0.37
T1380	ㅡ	35.179	59.4	15.875	31200	0.35
T1380	ㅡ	1.385	2.3386	0.625	7000	0.77
T1921	ㅡ	46.279	80.01	15.977	56500	0.34
T1921	ㅡ	1.822	3.15	0.629	12700	0.75
T4020	ㅡ	102.108	179.619	31.75	324000	3.7
T4020	ㅡ	4.02	7.0716	1.25	73000	8.16

Part Number		Dimensions
No Oil Holes In Retainer	Oil Holes In Retainer	Bore	Outside Diameter	Width
		d	D	T
		mm in.	mm in.	mm in.
T127	T127W	32.004	66.675	19.446
T127	T127W	1.26	2.625	0.7656
T128	ㅡ	32.004	66.675	18.654
T128	ㅡ	1.26	2.625	0.7344
T130	ㅡ	27.102	66.675	19.446
T130	ㅡ	1.067	2.625	0.7656
T136	ㅡ	35.179	66.675	18.654
T136	ㅡ	1.385	2.625	0.7344
T138	T138W	35.179	66.675	19.446
T138	T138W	1.385	2.625	0.7656
T138XS	ㅡ	35.179	66.675	19.446
T138XS	ㅡ	1.385	2.625	0.7656
T144	T144W	36.754	66.675	19.446
T144	T144W	1.447	2.625	0.7656
T144XA	ㅡ	36.754	66.675	19.446
T144XA	ㅡ	1.447	2.625	0.7656
T151	T151W	38.354	72.619	21.433
T151	T151W	1.51	2.859	0.8438
T152	ㅡ	38.354	72.619	20.638
T152	ㅡ	1.51	2.859	0.8125
T157	T157W	39.954	72.619	21.433
T157	T157W	1.573	2.859	0.8438
T163	T163W	41.529	72.619	21.433
T163	T163W	1.635	2.859	0.8438
T163X	T163XW	41.529	72.619	21.433
T163X	T163XW	1.635	2.859	0.8438
T169	T169W	43.104	82.956	23.812
T169	T169W	1.697	3.266	0.9375
T176	T176W	44.704	82.956	23.812
T176	T176W	1.76	3.266	0.9375
T177	ㅡ	45	73	20
T177	ㅡ	1.7717	2.874	0.7874
T177A	ㅡ	45.484	73	20
T177A	ㅡ	1.7907	2.874	0.7874
T177XA	ㅡ	45	73.127	20
T177XA	ㅡ	1.7717	2.879	0.7874
T177S	ㅡ	45	74.5	20.221
T177S	ㅡ	1.7717	2.9331	0.7961
T178	ㅡ	40.401	73	19
T178	ㅡ	1.5906	2.874	0.748
T182	T182W	46.279	82.956	23.812
T182	T182W	1.822	3.266	0.9375
T188	T188W	47.879	82.956	23.812
T188	T188W	1.885	3.266	0.9375
T189	T189W	47.879	82.956	23.02
T189	T189W	1.885	3.266	0.9063
T193	T193W	49.454	93.269	26.187
T193	T193W	1.947	3.672	1.031
T194	T194W	49.454	93.269	26.975
T194	T194W	1.947	3.672	1.062
T201	T201W	51.054	93.269	26.187
T201	T201W	2.01	3.672	1.031
T202	T202W	51.054	93.269	26.975
T202	T202W	2.01	3.672	1.062
T208	T208W	52.629	93.269	26.975
T208	T208W	2.072	3.672	1.062
T209	T209W	52.629	93.269	26.187
T209	T209W	2.072	3.672	1.031
T251	T251W	63.754	111.125	26.988
T251	T251W	2.51	4.375	1.0625
T252	T252W	63.754	111.125	25.796
T252	T252W	2.51	4.375	1.0156
T301	T301W	76.454	133.35	33.338
T301	T301W	3.01	5.25	1.3125
T302	T302W	76.454	133.35	34.925
T302	T302W	3.01	5.25	1.375
T350	ㅡ	88.9	133.35	33.335
T350	ㅡ	3.5	5.25	1.3124
T402	T402W	102.108	179.619	44.45
T402	T402W	4.02	7.0716	1.75
T600	T600W	152.4	241.3	76.2
T600	T600W	8	9.5	3
T1260	T1260W	32.004	55.562	15.875
T1260	T1260W	1.26	2.1875	0.625
T1380	ㅡ	35.179	59.4	15.875
T1380	ㅡ	1.385	2.3386	0.625
T1921	ㅡ	46.279	80.01	15.977
T1921	ㅡ	1.822	3.15	0.629
T4020	ㅡ	102.108	179.619	31.75
T4020	ㅡ	4.02	7.0716	1.25
